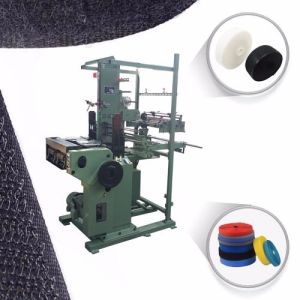

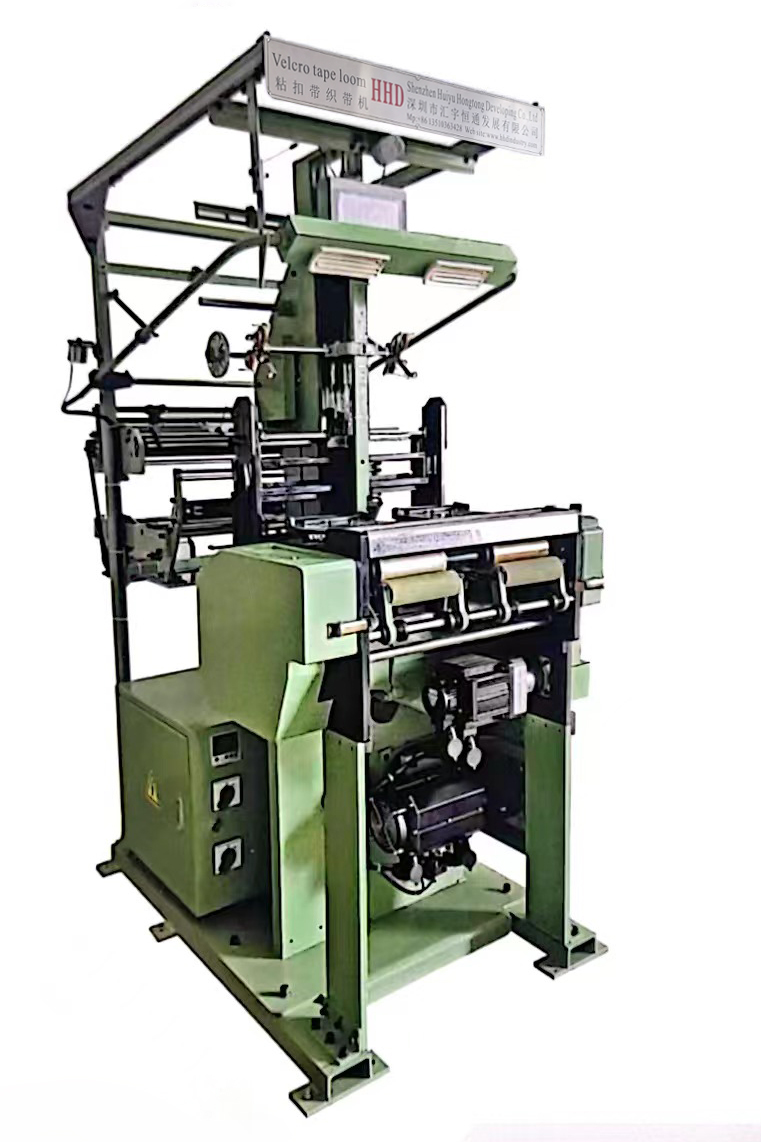

This high-class HY shuttleless ribbon loom series includes models 2/150, 2/175, 2/220, 4/80, and 1/450. The maximum application range of its steel reeds reaches 80mm to 450mm. The machine operates with shuttleless warp yarn and transverse needles, making it suitable for various narrow-width fabrics. It supports up to 10 shafts, each connected to a rocker and pendant chain. Depending on the fabric specification, the warp yarn movement speed can reach 250-700 cycles per minute.

• Electronic automatic weft and raw material feeding system ensures precise delivery and improves product quality.
• Innovative PLC and servo motor combination delivers over 30% energy savings.
• Infinitely variable spindle speed; micro-adjustment supports all types of hook and loop weaving.
• Electronic weft density system replaces traditional mechanical gears, eliminating stop marks and reducing failure rates.
• Heavy-duty base plate ensures stable operation with low noise and minimal vibration.
• Microcomputer-controlled heating maintains uniform surface temperature of finished products.
• Touch screen control with simple interface; compatible with ERP management systems.
• New lever rocker mechanism with efficient pendant chain shedding system for large shed opening and easy pattern changes.
• Major rocker uses a special rubber tension spring, reducing motor load and ensuring stable high-speed operation.
• Automatic lubrication circulates oil to the pendant chain, worm gear box, and key bearings, reducing wear and tear.
• Dual-motor brake system (fast and slow). Slow mode for fabric inspection; fast mode switches automatically. The system stops instantly upon yarn breakage.
• New roller pressing handle and dual-roller tape output design prevent skidding and ensure stable output.
